Product Detail

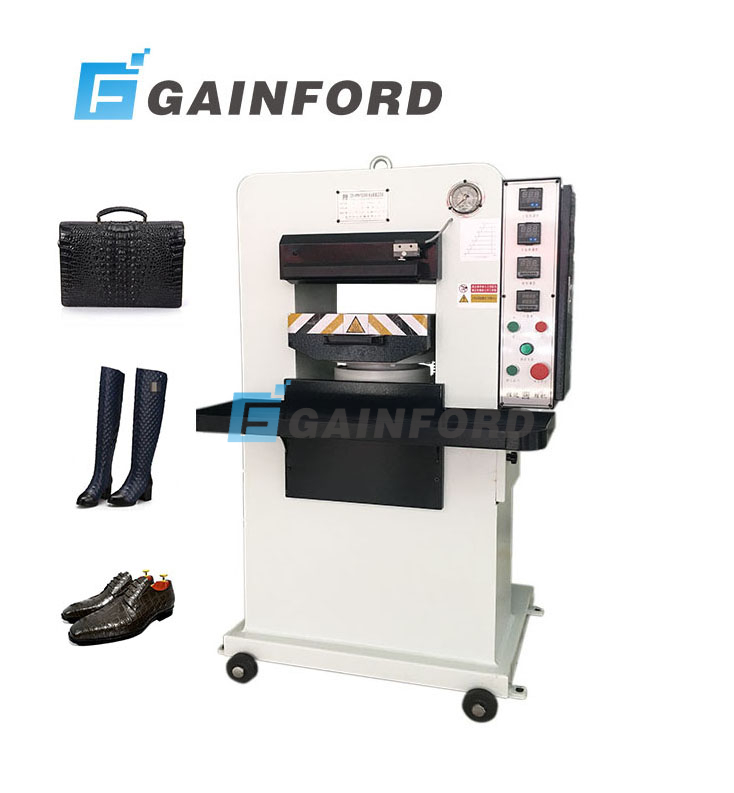

Manual hydraulic shoe upper embossing machine

: ~~No price~~

Cumulative sales0

Cumulative evaluation0

Quantity: - +

Proceed to Check Out Add to Cart

Collect

商品说明

1-2005251G023233 拷贝 .jpg

Features:

◆This machine is available in 40, 80, 110 and 130 ton pressure specifications.

◆The drawer-type workbench is equipped with safety devices, which is safe and convenient to operate.

◆This machine has the advantages of high pressure, high speed and good embossing quality.

◆Both the upper and lower working panels can be heated, the temperature can be controlled independently, and the lower electric heating plate can be disassembled and assembled as needed.

商品参数

Model	GF-XMHY3840	GF-XMHY3880	GF-XMHY38110	GF-XMHY38130
Machine size	850×900×1500（mm）	950×920×1500（mm）	1500×1250×1500（mm）	1600×1250×1500（mm）
Pack szie	950×1000×1700（mm）	1050×1020×1600（mm）	1600×1300×1550（mm）	1700×1350×1550（mm）
Weight	600KG	800KG	1200KG	1300KG
Motor power	1.5KW	2.2KW	2.2KW	2.2KW
Pressure	40T	80T	110T	130T
Working size	340×330(mm)	380×380(mm)	500×400(mm)	500×600(mm)
Voltage	380V 50HZ / 220V 60HZ
Hydraulic ouli	46#抗磨液压油（anti-abrade oil)
